1. Usage:

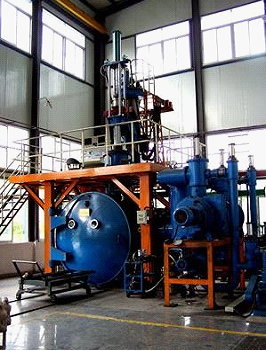

The vacuum consumable electrode arc solidification shell casting furnace is suitable for the melting and centrifugal casting of titanium, titanium alloys, and active refractory metals.

2. Features:

The centrifugal disc adopts a frequency conversion speed control system to precisely control the speed

The 2-electrode drive adopts variable frequency speed differential drive and advanced adaptive control technology

3 electrode drive with photoelectric sensing and digital weighing device for precise control of melting amount.

4. Computer controlled image monitoring system, safe and reliable.

3. Technical indicators:

1. Extreme pressure: 6.6 × 10-2Pa

2. Pressure rise rate: 1.0Pa/h

3. Working voltage: 20-45V

4. Melting capacity: 50-500Kg

5. Maximum dimensions of the mold: φ 2000 x 1200mm (centrifugal casting)

6. Maximum weight of castings: 500Kg

7 Melting speed: 15-20Kg/min

8. Centrifugal disc speed: 0-600 rpm, adjustable in both forward and reverse directions

9. Automatic casting speed: adjustable in 5-10 seconds

10 Melting current: 12-36KA

11. Cooling water usage: 60T/hour

12 Rapid speed increase: 0.6M/s

13 Crucible flipping angle: 0-110 degrees

4. Specification and model:

VTCC-50 kg//VTCC-150 kg/VTCC-260 kg/VTCC-500 kg
